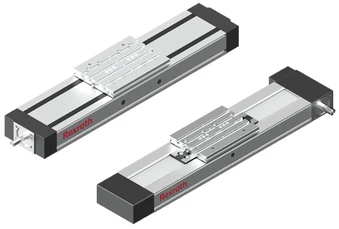

Bosch Rexroth CKK Compact Modules

CKK Compact Modules are ready-to-install, precision ball screw drive systems, characterized by high performance, compact design, and good price/performance ratio. They are available in any desired length and feature identical external dimensions as the CKR Compact Module, simplifying the ordering of accessories and attachments. EasyHandling compatible options also available through the GoTo Program.

• Two integrated zero-clearance ball rail systems provide optimized travel performance, high load capacities, and high rigidity
• Precision Ball Screw drive with preloaded ball nut, two row angular contact thrust bearing, and double ball bearings on float end
• Heavy duty toothed belt drive system capable of high thrust forces over long lengths    Easy motor attachment by means of locating feature and threaded holes on the drive head. (In-line and side drive options available)
• Adjustable switches over the entire travel range; switch activation without switching camEconomical maintenance thanks to one-point lubrication feature (grease lubrication) from both sides or via the carriage
• Precise alignment and secure fastening of attachments with threads and pin holes in the carriage
